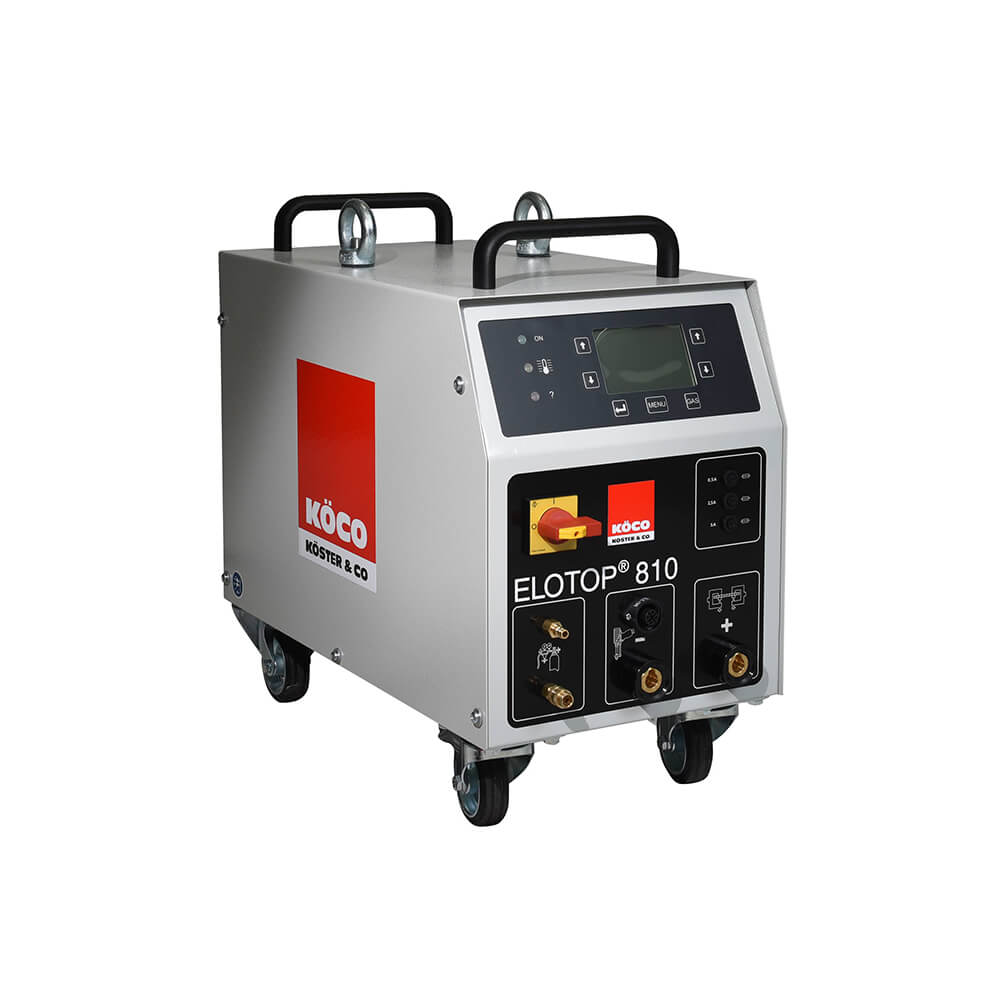

With our robust ELOTOP 810 every welding process super easy! The long-lasting welding machine is suitable for weldable stud ranges between 3-12 mm and allows a maximum current of 800 A. The time setting range of this lightweight machine is a maximum of 600 ms and, in addition to safe operation, also offers flexible application possibilities and a robust housing.
| Value | |
| Stud welding with ceramic ferrule, weldable stud range Ø (mm) | 3–12 |
| Short cycle stud welding, weldable stud range Ø (mm) | 3–8 |
| Stud welding with shielding gas, weldable stud range Ø (mm) | 3–10 |
| Max. current (A) | 800 |
| Current setting range (A) | 50–750 |
| Time setting range (ms) | 20–460 |
| Gas pre-flow time (ms) | 100–2000 |
| Storage of paramaters | 20 |
| Max. stud/min. at … Ø (mm) | 32 /3 3 /12 |
| Mains connection 50/60 Hz, 3-phase (V) | 230/400 |
| Mains plug at 400 V (A) | 32 |
| 4-wire mains cable at 400 V (m/mm²) | 5/4 |
| Mains plug at 400 V (A) | 35/25 |
| Mains power consumption at …% ED (kVA) | 1,4/3,2/100 55/38/7 |
| Tolerance range mains voltage (%) | – 15 /+ 6 |
| Class of protection | IP 23 |
| Cooling | F |
| Housing dimensions (L x B x H) mm | 555 x 308 x 535 |
| Handle | 2 |
| Lifting eye | 2 |
| Weight (kg) | approx. 65 |
