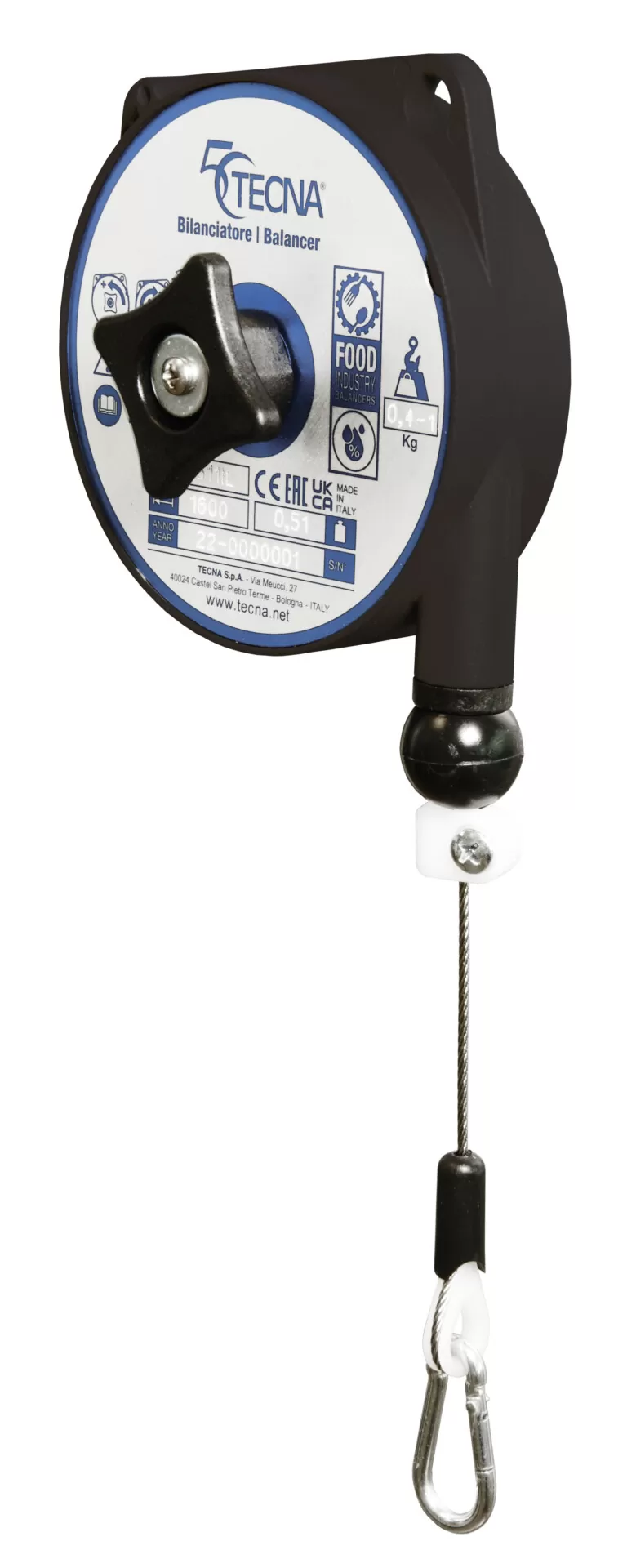

FOOD INDUSTRY BALANCERS 9310IL/9313IL – CAPACITY 0,2/3 KG

Cast aluminium housing with special hard anodization, resistant to oxidation and chemical aggression.
NSF-H1 certified Food Grade grease.
Rust-proof stainless steel materials on all external parts.
Rugged construction, cast aluminium housing with hard anodization, resistant to oxidation and chemical aggression.
NSF-H1 certifies Food Grade grease.
Rust-proof stainless steel materials on all external parts.
Stainless steel rope.
Adjustable capacity.
Auxiliary safety suspension.
Adjustable stroke limiting device.
Cable guide in antifriction material.
Inert spring drum assembly.
Polyamides thimble.

Types

Clear

Main Features

Technical Sheet

Main Features

Technical Sheet

ITEM	Units	9310IL	9311IL	9312IL	9313IL
Capacity	kg	0.2-0.5	0.4-1	1-2	2-3
Stroke	mm	1600	1600	1600	1600
Net weight	kg	0.55	0.57	0.60	0.74
Gross weight	kg	0.7	0.7	0.7	0.8
Package dimensions	mm	204 112 62	204 112 62	204 112 62	204 112 62

Specifications subject to change without notice.
