Here is a next-generation flexible conduit with feeding resistance reduced by using rollers in the wire feeding path inside the cable. The pieces can be separated or added on a block-by-block basis, allowing the length to be adjusted at will.

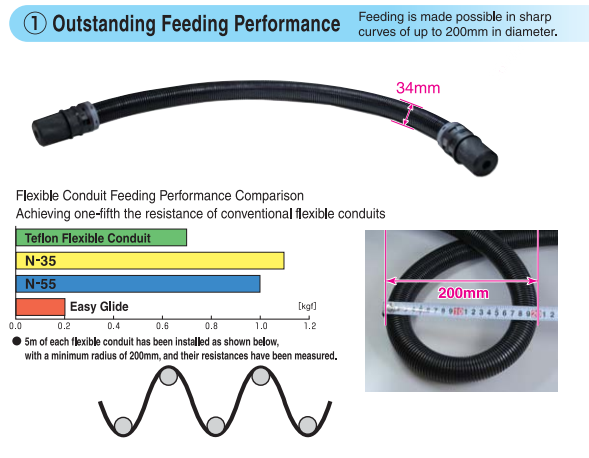

1. Outstanding Feeding Performance

• Achieving one-fifth the resistance of conventional flexible conduits.
• 5m of each flexible conduit has been installed with a minimum radius of 200mm, and their resistance has been measured.

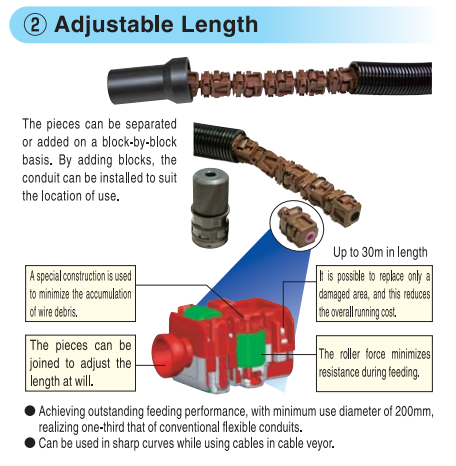

2. Adjustable Length

• The pieces can be separated or added on a block-by-block basis. By adding blocks, the conduit can be installed to suit the location of use.
• Achieving outstanding feeding performance, with minimum use diameter of 200mm, realizing one-third that of conventional flexible conduits.
• Can be used in sharp curves while using cables in cable veyor.

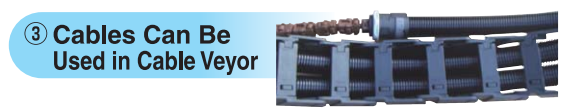

3. Cables Can Be Used in Cable Veyor
